MCD Elektronik USB-HUB 8-Port Switchable USB 2.0/3.0 Hub
Couldn't load pickup availability
Brand: MCD Electronic
Type: HUB
Benefits of the MCD USB-HUB 8-Port Industrial Hubs with 8 Switchable Ports for USB 2.0/USB3.0
Activate only the USB hub ports you need, save power, and protect your hardware.
Additional power supply for USB devices via integrated octo relais multiplexer.
Versions for USB 2.0 and USB 3.0.
MCD-USB-HUB 8-Port Switchable 8-Port USB Hubs with Additional 8x Relay Multiplexer.
Simply activate the devices you need. This gives you the benefit of saving electricity,
This protects your hardware, and your computer is not compromised in its performance.

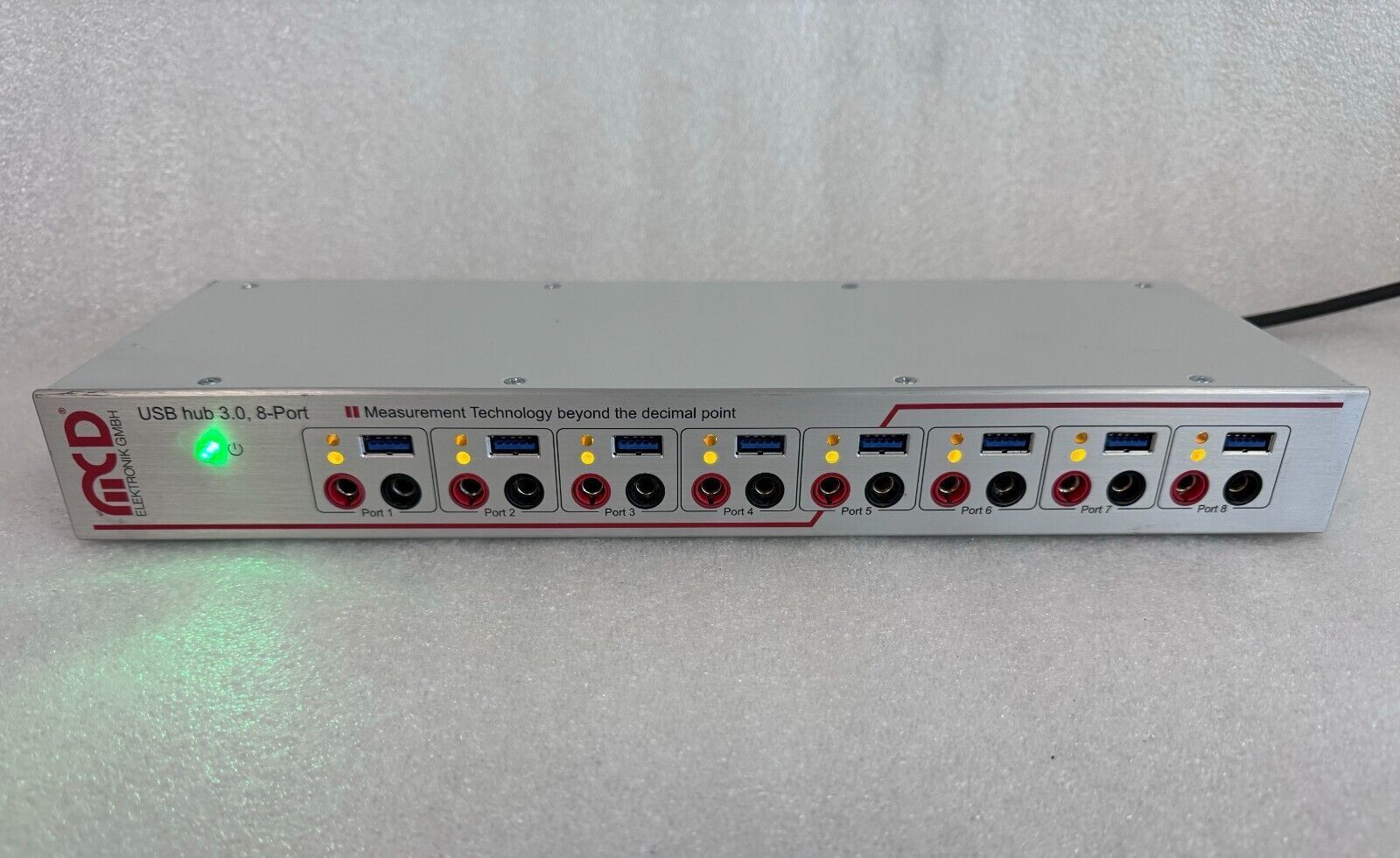

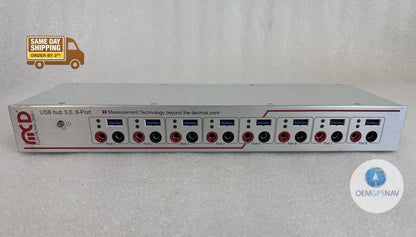

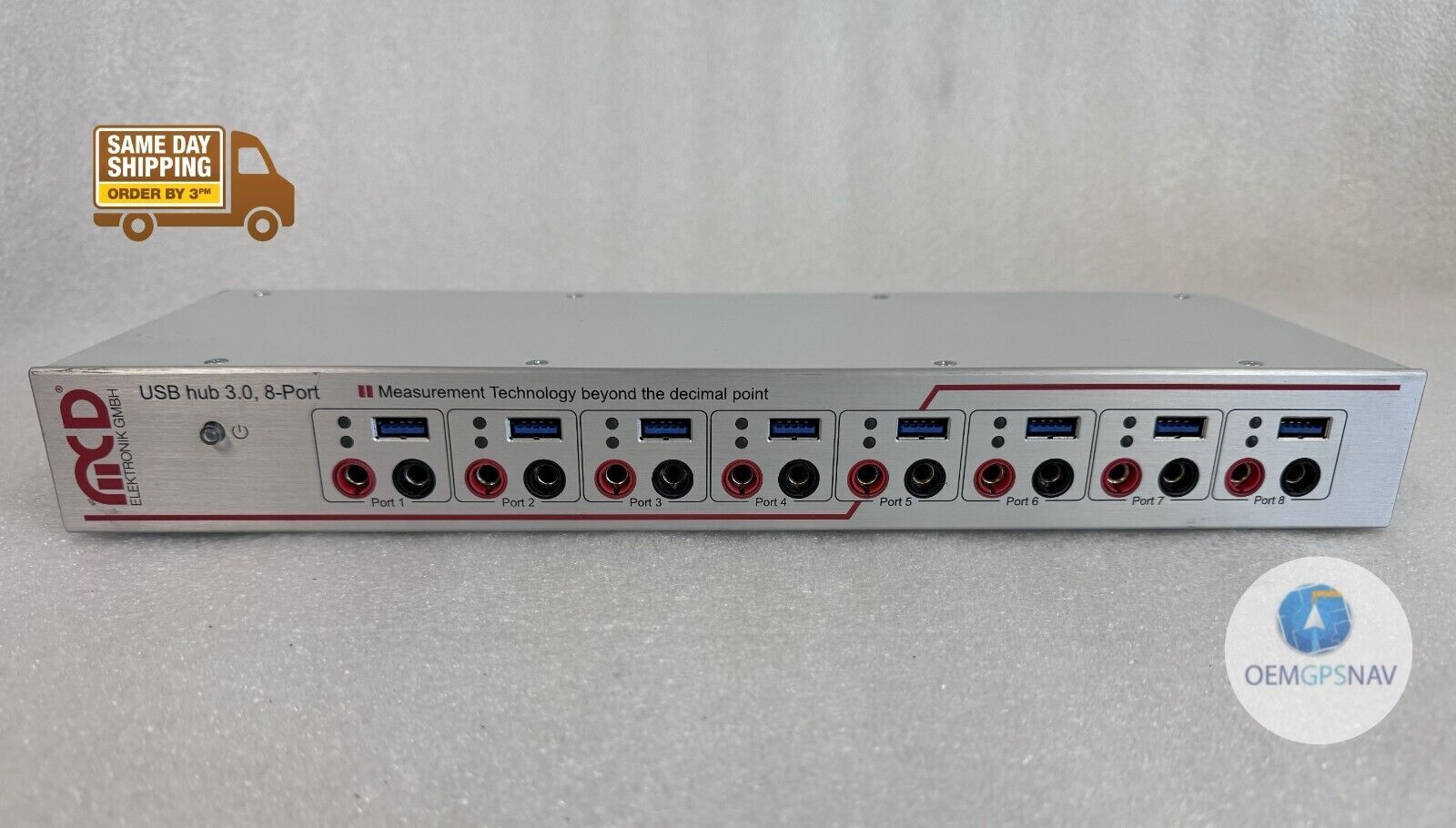

USB hub with eight USB 2.0 or 3.0 downstream ports.
Downstream ports can be turned on/off individually via USB.
When turned off, the power supply (+5V), and the data lines are isolated by semiconductor switches.
Whether ports are active after the device is turned on, and which ports, can be configured and stored.
Each USB port can be configured as a standard port (SDP), charging-capable connection (CDP),
or a charger connection (DCP); providing the connected device with up to 2.5A.
Additional 8-channel relay multiplexer to turn a centrally connected voltage (at most 48V)
on each port individually on and off. independently from one another.
Use for example for supplying a device with a voltage other than 5V. The connection uses a 4mm banana plug.
Whether and which ports should be activated after the hub is turned on can be stored in non-volatile storage.
A switch on the device can be used to temporarily turn off all ports or restore the previous switching state of all ports.
A number that can be stored in the device can be used to distinguish between multiple USB-HUB 8-Port units on a PC.
The MCD USB-HUB 8-Port can be controlled with a COM, DCOM, and DLL interface from virtually any programming language.
The device can be integrated into a variety of applications like MCD TestManager CE, Lab VIEW, Microsoft Visual Studio, etc.,
using the Toolmonitor USB-Hub (included). Moreover for the use of Linux, the USB-HUB 8-Port is recommended.

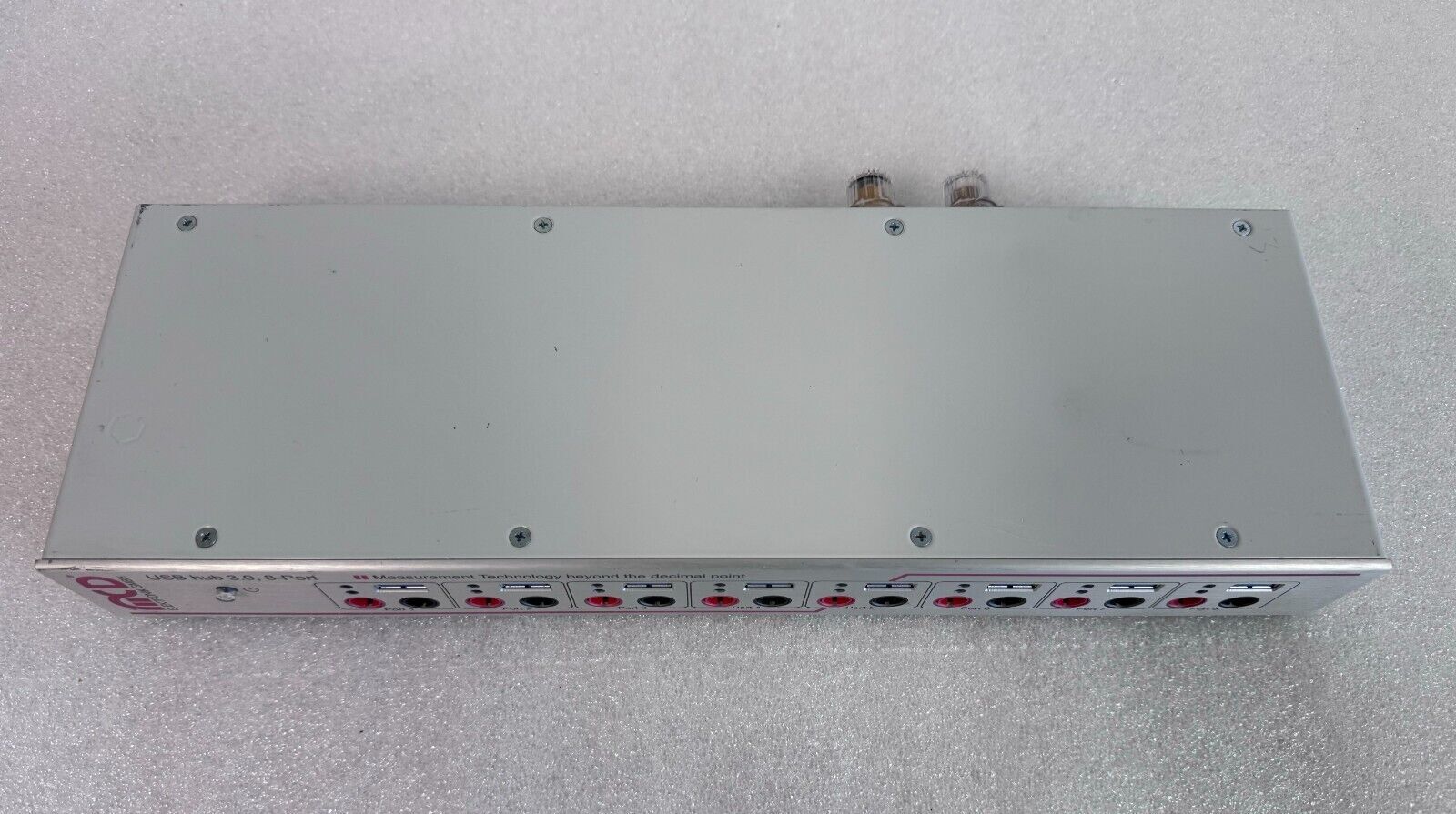

Rugged metal housing.

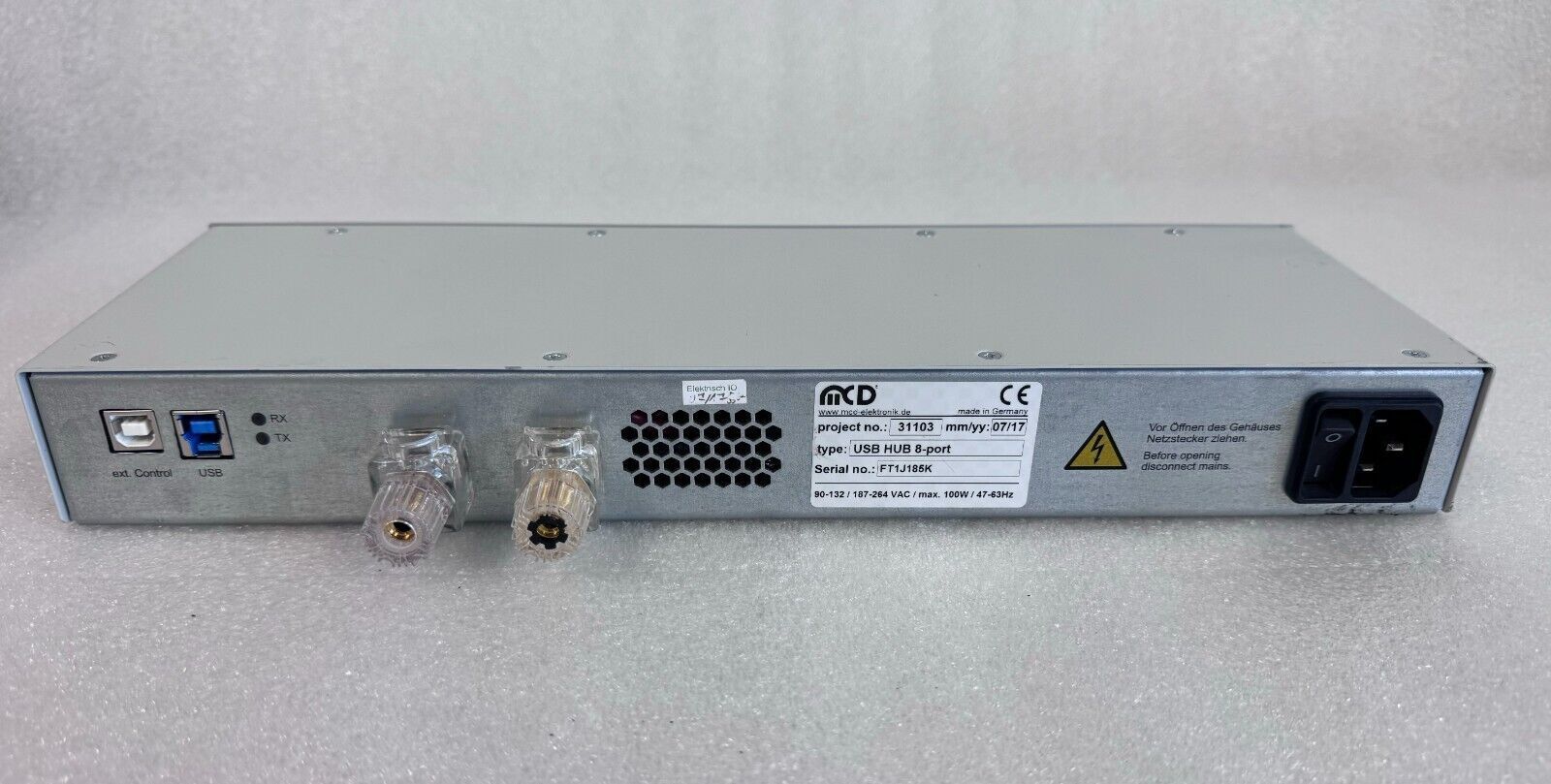

An additional function of the USB 3.0 version: The USB 3.0 host connection is used to control the hub.
Alternatively, there is the choice to control the hub via the additional USB 2.0 connector at the backside.
