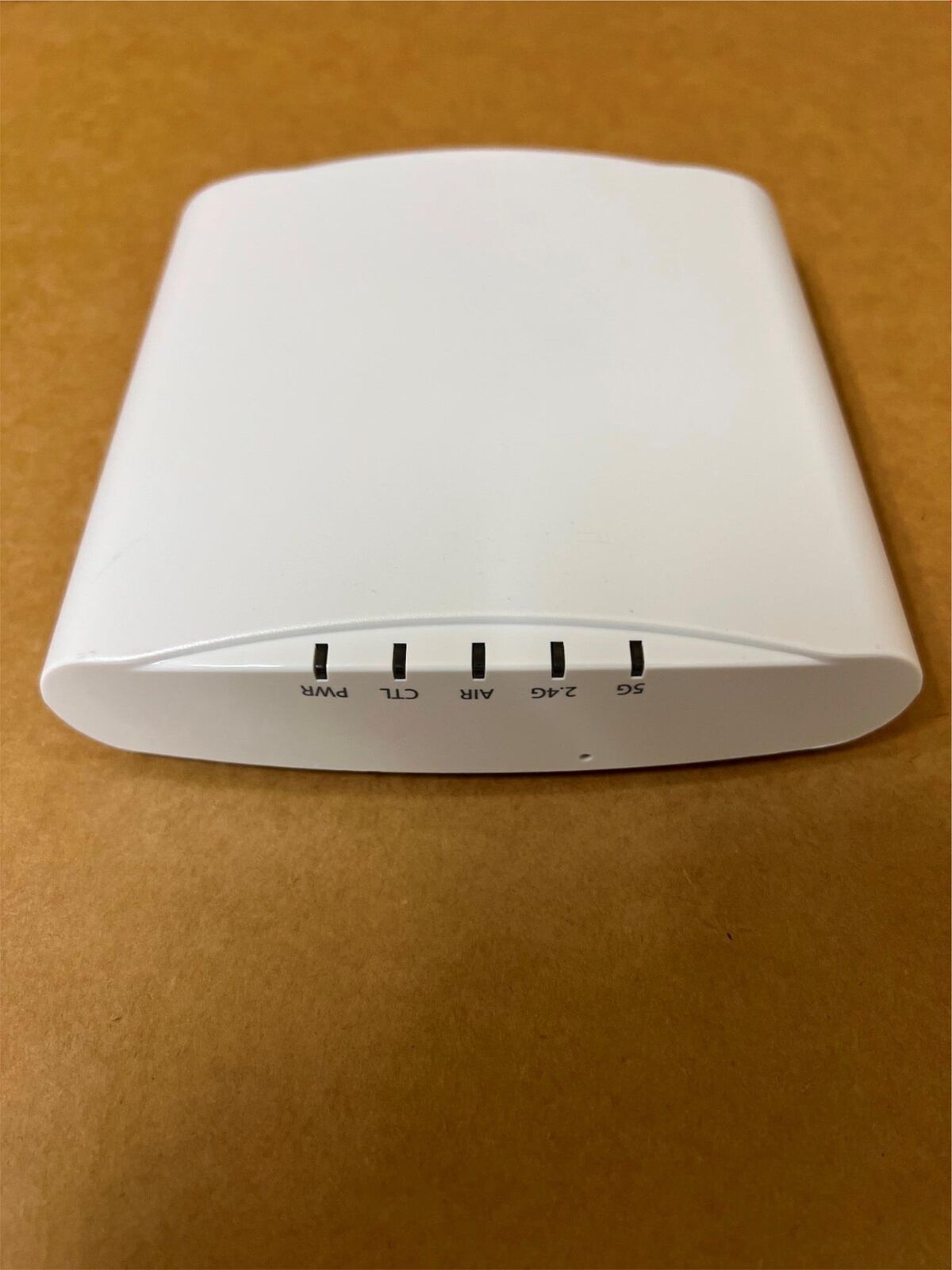

Ruckus ZoneFlex R700 Dual Band Access Point - 901R700US00

Brand: Ruckus

Type: Extender

Model: R700

INTERCHANGEABLE MODEL: R700

UPC: Does not apply

USED, FULLY WORKING UNIT.GOOD PHYSICAL CONDITION WITH NORMAL WEAR.

Ruckus - 901-R310-XX02

The Ruckus ZoneFlex R310 delivers reliable 802.11ac wireless networking at the industry's most affordable price point.

Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R310 combines patented adaptive

antenna technology and automatic interference mitigation to deliver consistent, predictable performance

at extended ranges with up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation.

Additional performance enhancements to signal gain can be attributed to the chip-based transmit beamforming

capability adding 3dB when associated with a compatible client. Each ZoneFlex R310 integrates Ruckus-patented

BeamFlex is a software-controlled, high-gain antenna array that continually forms and directs each 802.11ac packet

over the best-performing signal path. The ZoneFlex R310 automatically selects channels for the highest throughput

potential using the Ruckus ChannelFly dynamic channel

Standards

IEEE 802.11a/b/g/n/ac

2.4GHz and 5GHz

Supported Data Rates

802.11n/ac: 6.5Mbps 173.4Mbps (20MHz) 13.5Mbps 400Mbps (40MHz), 29.3Mbps - 867Mbps (80MHz)

802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps

802.11b: 11, 5.5, 2 and 1 Mbps

802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps

Radio Chains

2 x 2

Spatial Streams

2

Channelization

20MHz, 40MHz, 80MHz

Operating Channels

US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan X41: 1-13

5 GHz channels: Country dependent

Frequency Band

IEEE 802.11 b/g/n: 2.4  2.484 GHz

IEEE 802.11a/ac: 5.15 5.25 GHz; 5.25  5.35 GHz; 5.47 5.725 GHz; 5.725 5.85 GHz

Bssid

Up to 8 per radio (16 per AP)

Wireless Security

WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

Authentication via 802.1X with the ZoneDirector or SmartZone,

local authentication database, support for RADIUS, LDAP, and ActiveDirectory

Power

DC Input: 12 VDC 1.0A (12v power adapter not included)

Power over Ethernet 802.3 af

Physical Size

13.8cm (L), 13.5cm (W), 3.3cm (H)

5.4 in (L), 5.3 in (W), 1.3 in (H)

Weight

220 gms (0.485 lbs)

Ethernet Ports

1 auto MDX, auto-sensing 10/100/1000Mbps, RJ-45, POE port

Lock Options

Hidden latching mechanism

Kensington Lock Hole

T-bar Torx

Environmental Conditions

Operating Temperature: 0C - 40C

Operating Humidity: 10% - 95% non-condensing

Power over Ethernet Input

Idle: 6W

Typical: 7.8W

Peak: 11W
