Ecoflow Power Kits Power Hub NEW ZMM100HUB-US

Brand: EcoFlow

Power Source: Solar

Type: Power Kits Power Hub

Current Rating: ZMM100HUB-US

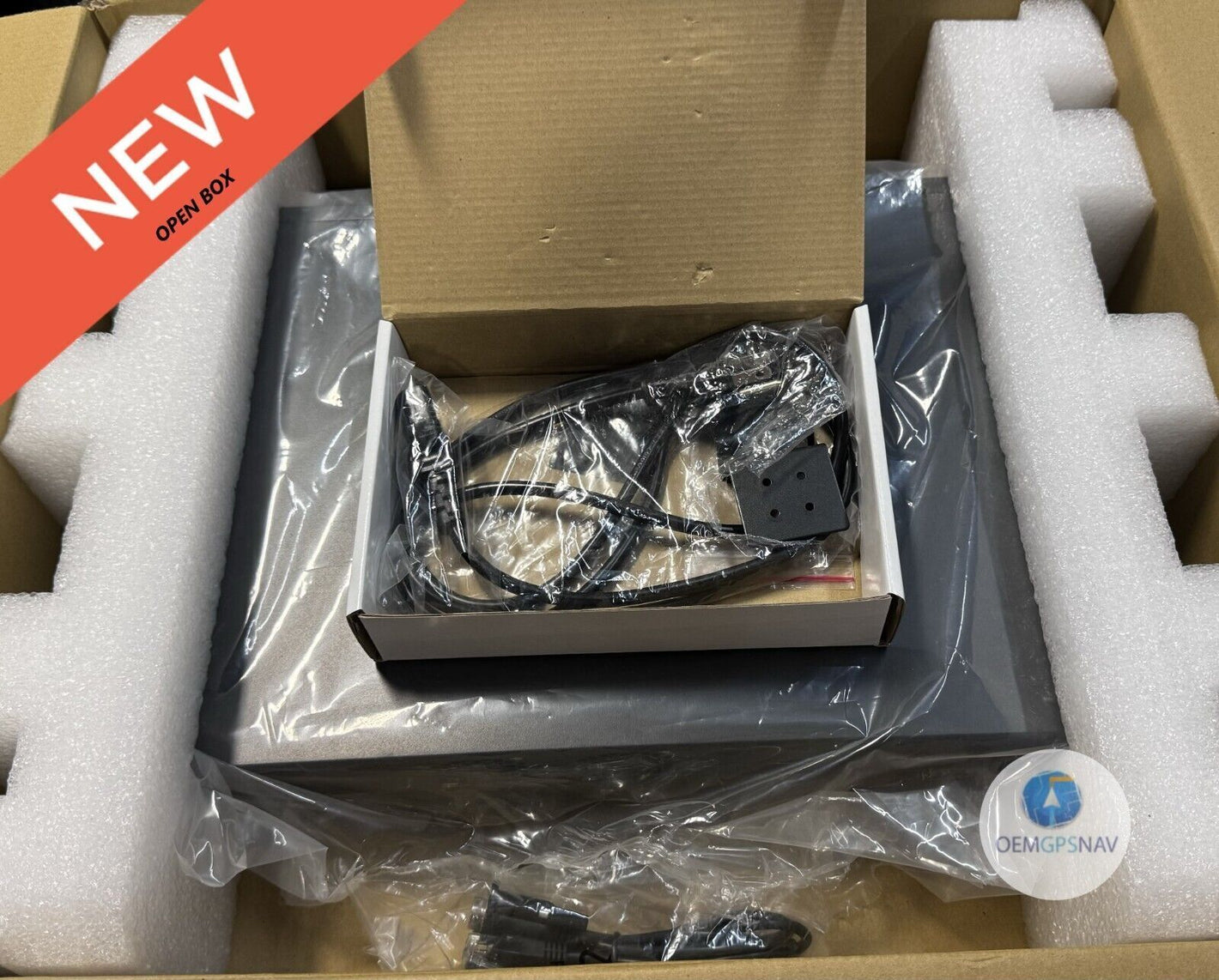

BRAND NEW AS PICTURED IN THE ORIGINAL BOX.

OPENED TO VERIFY. RETAILS FOR $3000

Description

Pure Sine Wave

60A Max, 12V/24V, 1000W DC Main Output

25A Max, 120V, 3000W AC Main Output

20A Max, 120V, 2400W AC Outlet

85V~144V, 3000W AC Charger

60A, 13V~60V, 1000W Convertible

DC-DC Battery Charger with MPPT

Dual 30A, 15V~150V, 1000W MPPT

Solar Charge Controllers

Operating Temp. -13F to 140F

18.9in X 5.5in X 11.8in (LWH)

 Net Weight::     31lbs

CE, UL, FCC Compliance

EMC Class A

Specifications:

SKU ZMM100HUB-US

Basic Information::Net Weight (31 lbs)

Dimensions (L W H) (18.9 in x 5.5 in x 11.8 in)

Wi-Fi Supported (<120 Meters)

Bluetooth (v4.0)  Supported (<15 Meters)

Output Spec

AC Main Out Pure sine wave, 3600 W (surge 7200 W, 100 ms), 120 V, 60 Hz

Linear derating to 1800 W when 40? (104F) < Ambient

Temperature < 60? (140F)

Derating to 3000 W when battery voltage < 49 V

AC Standard Out 120 V 20 A

Maximum AC Output

Supported by X-Boost 5200 W

DC Output:13.6 V 70 A, maximum power: 1000 W

or 26.4 V 60 A, maximum power: 1600 W

Input Spec

AC Input Power:: 3000 W maximum power,

30 A maximum current, supported

by EcoFlow X-Stream Technology

AC Input Voltage 100120 V, 50 Hz/60 Hz

PV Input 2/3 2/3 1560 V 30 A, maximum power: 1600 W

Alternator Input 1 1360 V 60 A, maximum power: 1600 W

PV Input 1 1560 V 30 A, maximum power: 1600 W

Battery Port Spec

Battery Port (x3) 40-60 V 100 A, supports up to three 2kWh or 5kWh LFP

batteries, which are sold separately.(Not recommended to

use one Power Hub with both EFM100-BPB and EFM100-BP

at the same time.)

Operating Environment

Operating Temperature 25C to 60C (-13F to 140F)

Storage Temperature 25C to 60C (-13F to 140F)

Other

EcoFlow Smart Generator: 1800 W maximum charging power, sold separately
